4mm Pelletized Activated Carbon for Flue Gas & Odor Control
4mm Pelleted Activated Carbon for Flue Gas & Odor Control - YIHANG
High-performance 4mm pelleted activated carbon for industrial flue gas treatment and odor control.

Low pressure drop and high CTC.

Get a free quote now!

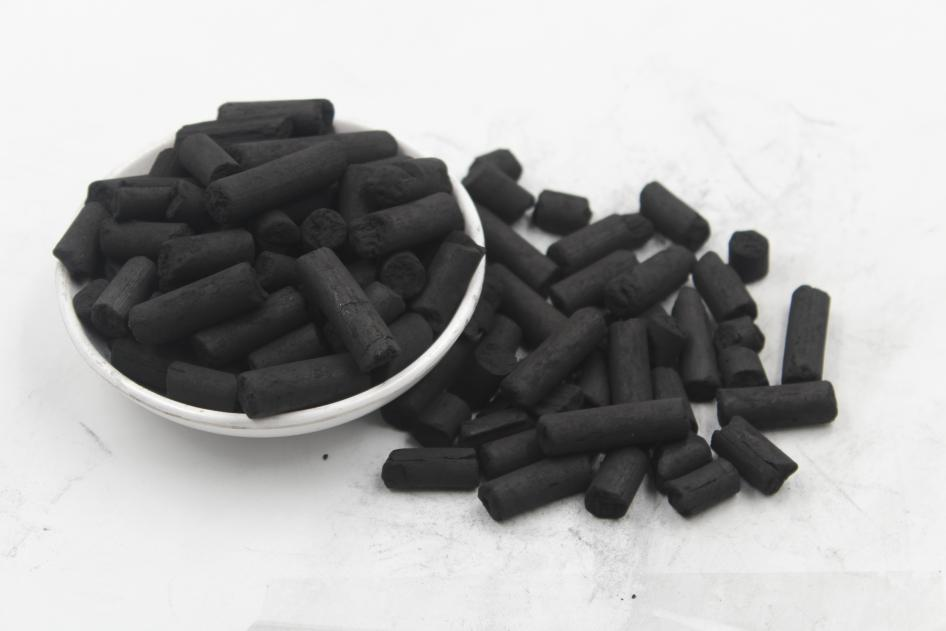

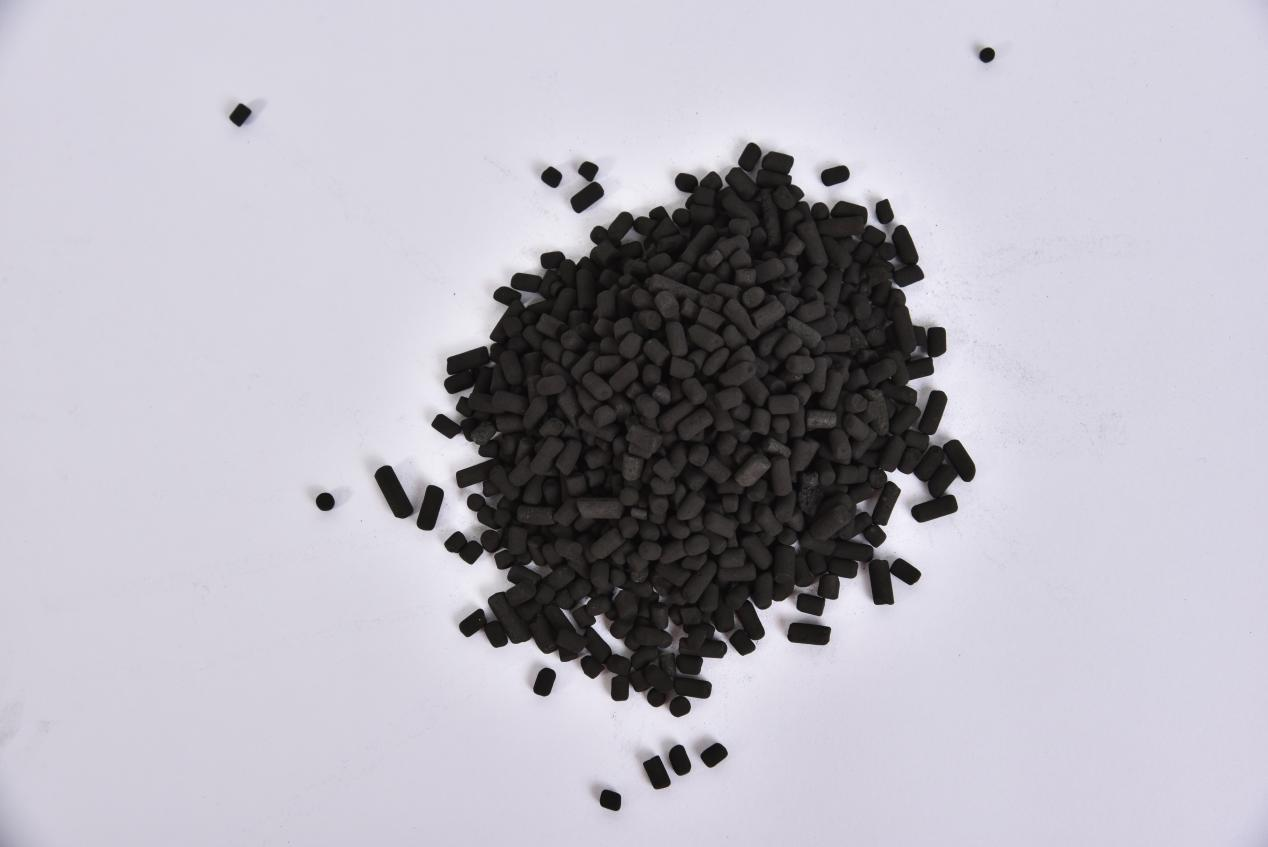

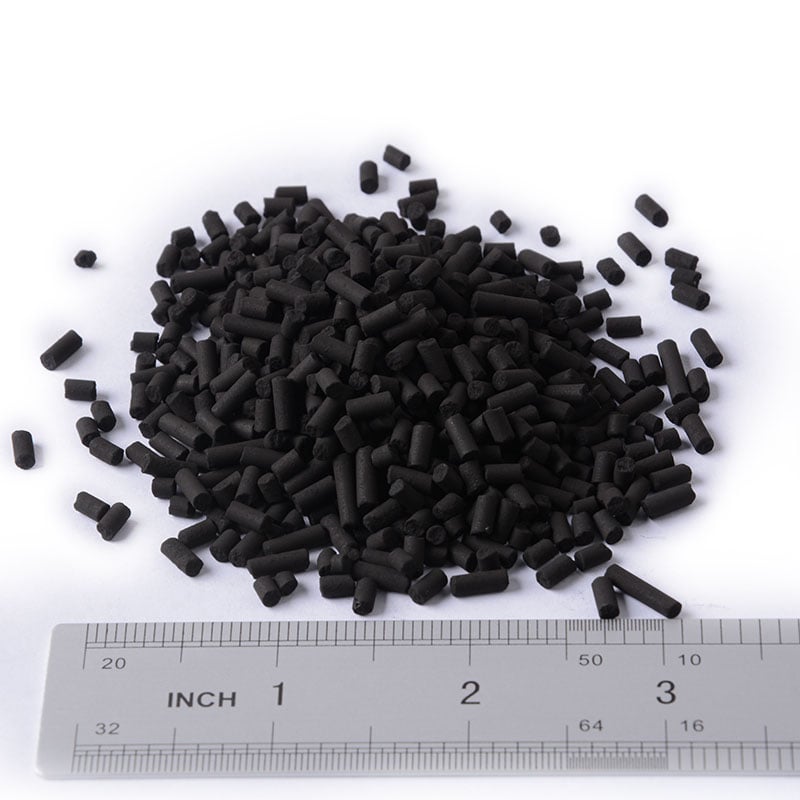

4mm pelletized activated carbon is a high-performance, extruded carbon media engineered specifically for industrial flue gas purification and odor control applications. Manufactured from premium coal or coconut shell feedstock, this columnar carbon combines high CTC activity with an optimized 4mm diameter geometry to deliver maximum pollutant capture with minimal system pressure drop. Whether you are treating stack emissions, controlling nuisance odors, or recovering valuable solvents, this carbon provides reliable, long-lasting performance in demanding gas-phase environments.

Core Parameters

Parameter	Specification
Diameter	4.0 mm
Iodine Value	600–1100 mg/g
CTC (Carbon Tetrachloride)	40%–70%
Hardness	≥95%
Moisture Content	≤5%
Ash Content	≤10%–15%

Custom iodine and CTC grades available upon request.


Application Scenarios

We offer complimentary sample testing and provide technical guidance. For bulk purchases, we offer customized solutions and preferential pricing; furthermore, we guarantee free returns or exchanges for any quality-related issues occurring within the warranty period.

Trust & Credibility:

1. Certifications: We hold ISO 9001 Quality Management Certification and NSF/ANSI 61 Standard Certification, ensuring full compliance with safety requirements for drinking water treatment applications.

2. Proven Track Record: We serve numerous water treatment plants and chemical enterprises worldwide, consistently delivering reliable performance in both industrial wastewater and drinking water purification projects, and enjoying an excellent reputation within the industry.

3. Professional Support: Backed by over 25 years of experience in the R&D and manufacturing of activated carbon for water treatment, we provide personalized, one-on-one guidance to assist you in selecting the optimal product for your specific needs.

Why Choose Us?

Premium Quality Materials: We use high-quality coal or coconut shell as raw materials, ensuring our 4mm pellets have a developed pore structure and high iodine value for maximum adsorption.
Optimal Airflow Design: Our 4mm extruded shape is specifically engineered to balance high surface area with a low pressure drop, making it ideal for high-volume flue gas systems.
Superior Hardness: With a hardness rating of $\geq95\%$, our carbon minimizes dust formation during loading and operation, protecting your equipment and maintaining efficiency.
Strict Quality Control: Every batch undergoes rigorous testing for CTC, moisture, and ash content in our ISO-certified laboratory before shipment.
Customized Solutions: Whether you need specific technical parameters or custom packaging, our team of experts provides tailored solutions to meet your industrial requirements.


FAQ

1.What are the main applications for 4mm pelleted activated carbon?

It is primarily used for industrial flue gas treatment, VOC removal, solvent recovery, and odor control in wastewater treatment or commercial kitchen exhaust systems.

2.Why is the 4mm diameter preferred for flue gas purification?

The 4mm size offers the best balance between filtration efficiency and airflow. It allows large volumes of air to pass through with minimal resistance (low pressure drop) while effectively capturing pollutants.

3.What is the typical iodine value of your 4mm activated carbon?

Our standard 4mm pellets range from 600-1000mg/g, depending on your specific application and budget requirements.

4.Can this carbon be used for VOC removal?

Yes, it is highly effective at capturing Volatile Organic Compounds (VOCs).
We recommend a higher CTC (Carbon Tetrachloride) activity grade for optimal solvent and VOC adsorption.

5.How often should I replace the activated carbon in my flue gas system?

Replacement frequency depends on the concentration of pollutants and the airflow volume. Typically, we recommend monitoring the outlet gas concentration to determine the saturation point.

6.Is your activated carbon pellets durable enough for deep-bed filters?

Absolutely. Our pellets feature a high mechanical hardness , ensuring they remain intact even under high-pressure airflow in deep-bed filtration systems.

7.Do you offer different base materials for the 4mm pellets?

Yes, we provide coal-based, wood-based, and coconut shell-based 4mm pelleted activated carbon to suit different gas-phase or liquid-phase applications.
